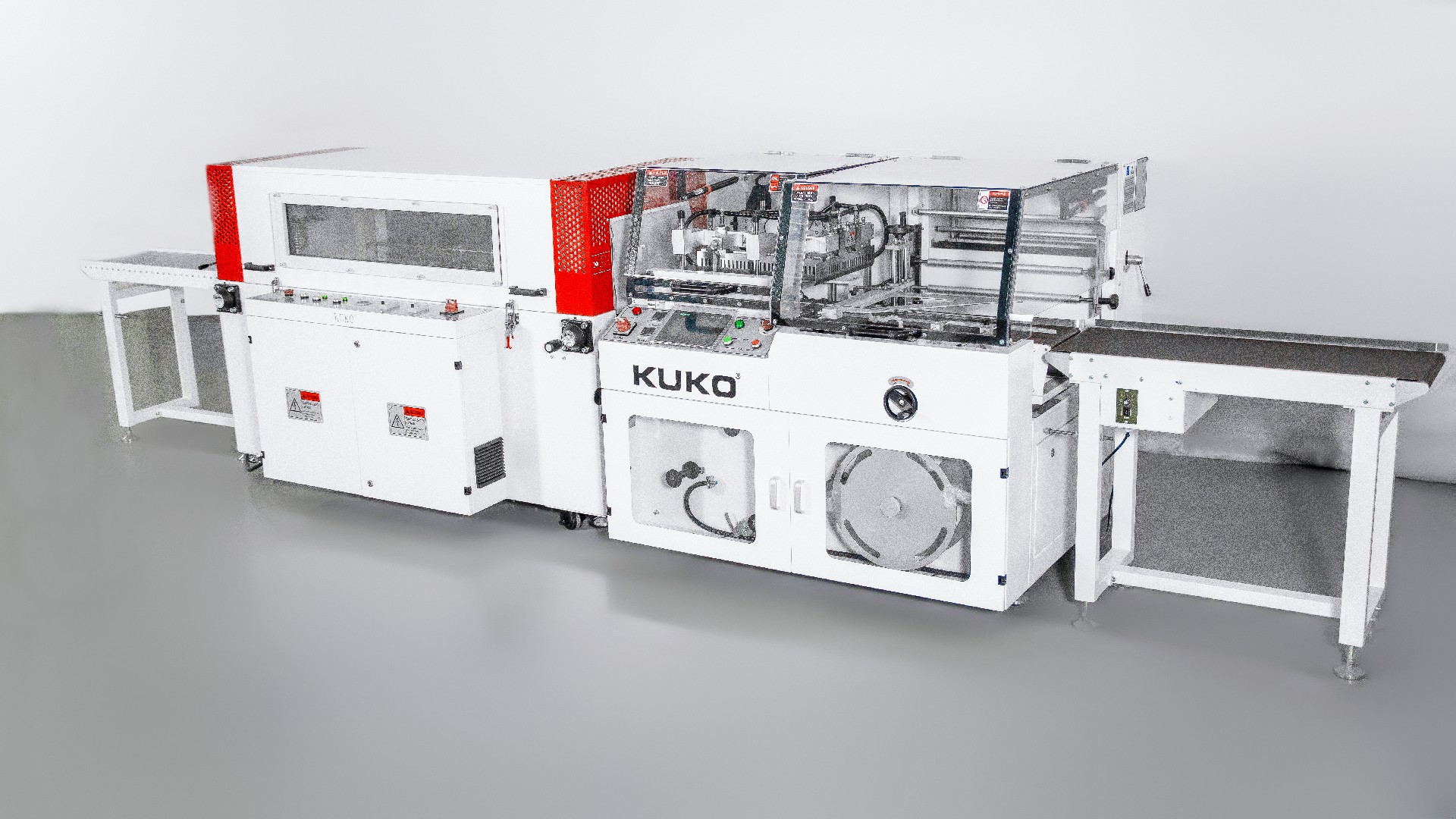

Fully-auto Vertical L Bar Sealer & Shrink Tunnel (Small Model)
GH-450LV is a fully automatic, unmanned L-type sealing machine independently developed by our company. It is widely used in high-volume packaging production lines, where it completes the entire process—including automatic feeding, conveying, sealing, and shrinking—in one continuous operation. With high working efficiency, it is particularly suitable for tall and large-sized products. Additionally, it can be configured with the close-contact GH-450LVC Vertical Sealing Machine.
  • GH-450LV is a fully automatic, unmanned L-type sealing machine independently
    developed by our company. It is widely used in high-volume packaging
    production lines, where it completes the entire process—including
    automatic feeding, conveying, sealing, and shrinking—in one continuous
    operation. With high working efficiency, it is particularly suitable for
    tall and large-sized products. Additionally, it can be configured with
    the close-contact
    GH-450LVC Vertical Sealing Machine.

  • The sealing section adopts a vertical drive system, ensuring even contact
    on the sealing surface. This vertical drive overcomes issues common in
    traditional L-type automatic sealing machines, such as wrinkling and
    misaligned sealing lines, achieving excellent sealing results.

  • The machine is equipped with an advanced PLC programmable controller,
    safety protection, and alarm devices. The sealing system operates
    continuously and smoothly without the need for replacement, and
    maintenance and operation are very simple.

  • Feed length is controlled by a combination of photoelectric sensors and timers, ensuring precise film length.

  • Horizontal and vertical photoelectric sensors are installed for easy switching,
    enabling simple sealing and packaging of thin or small items.

  • Automatic waste winding is driven by an independent motor, preventing
    over-loosening or over-tightening that could cause tearing, and
    facilitating easy waste removal.

  • The sealing blade is raised and lowered by an electric motor to accommodate
    products of different heights, achievable with the touch of a button.

  • SF-5030LG
    uses imported dual air-circulation motors to ensure even heat
    distribution in the chamber, resulting in a more aesthetically pleasing
    shrink effect.

  • The chain rod conveyor uses solid steel rods sheathed in imported silicone
    tubes for durability. Different conveyor chain materials can be used for
    different products.

  • The conveyor speed is controlled by a frequency converter for stepless speed adjustment.

  • A high-airflow cooling system rapidly cools and sets the product after
    shrinking. An optional aluminum workbench at the rear prevents packaged
    products from falling to the ground.

  • Suitable for sealing and shrinking medium-sized objects such as tea gift boxes, frequency converters, routers, and computers.


ModelGH-450LVSF-5030LG
Power3.2kw21kw
Power SupplyAC 380/220V 3PH 50/60HzAC 380/220V 3PH 50/60Hz

Maximum Packaging Dimensions

 L×W×H

L+H≤400mm, W+H≤300mm, H≤100mm


Heat Tunnel Dimensions L×W×H/2000×500×300mm

Effective Sealing and Cutting Dimensions

L x W x H

450×350mm/
Packaging Speed20-35m/min.0~35m/min.
External Air Supply6-8kg/cm2/
Shrink FilmPOFPOF
Machine Dimensions L×W×H1580×1386×1300mm2300×985×1260mm
Wooden Case Dimensions
 L×W×H
1680×1468×1450mm2400×1085×1460mm
Gross/Net Weight825/700kgs650/570kgs
