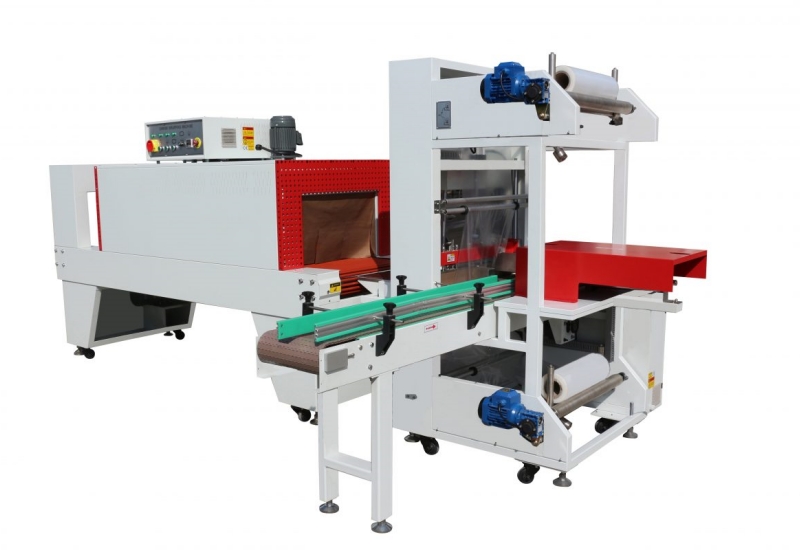

Fully-auto Sleeve Sealer & Shrink Tunnel (Integral Type)
GH-6030A + SF-6040EFully-auto Sleeve Sealer & Shrink Tunnel (Integral Type) is designed for individual items or products with paper trays. This machine can be integrated with production lines to achieve fully automated unmanned operation, including automatic feeding, film wrapping, sealing, cutting, shrinking, cooling, and shaping.
  • GH-6030A + SF-6040E Fully Automatic Sleeve Packaging Machine (Integral Type)
    is designed for individual items or products with paper trays. This
    machine can be integrated with production lines to achieve fully
    automated unmanned operation, including automatic feeding, film
    wrapping, sealing, cutting, shrinking, cooling, and shaping.

  • GH-6030A incorporates internationally advanced technology and manufacturing
    processes, ensuring stable and reliable performance with automatic daily
    production calculation.

  • Sensor-based film feeding significantly reduces film waste.

  • Original Omron digital temperature controller provides precise temperature
    control, allowing real-time monitoring of sealing temperature.

  • Stepless mechanical speed regulation device adjusts the feed conveyor speed.

  • Equipped with Siemens PLC programmable processor and intelligent touch screen
    for integrated mechanical, electrical, and pneumatic control.

  • Specially designed three-piece sealing blade ensures strong sealing lines, no cracking, and anti-stick performance.

  • The feed conveyor can be designed for left-side or right-side feeding as needed.

  • SF-6040E uses imported dual air-circulation motors and high-capacity cooling
    airflow to ensure even heat distribution in the chamber, enabling rapid
    cooling and shaping after shrinking.

  • The conveyor speed is controlled by a frequency converter for stepless adjustment.

  • The entire machine utilizes French Schneider frequency converters for stepless speed control of the conveyor.

  • Suitable for collective or individual shrink packaging of beverages, beer,
    mineral water, cans, glass bottles with paper trays, and integrated
    paper box/color box products.


ModelGH-6030ASF-6040E
Power3kw28kw
Power SupplyAC220V 1/3PH 50/60HzAC220V/380 3PH 50/60Hz
Maximum Packaging Dimensions300×500×300mm1500×500×300mm
Heat Tunnel Dimensions/1800×600×400mm
Cutting Blade Length670mm/
Air Temperature0-300℃0-300℃
Workbench Height825±25mm825±25mm
Packaging Speed0-15m/min.0-15m/min
External Air Suppl6-8kg/cm2/
Shrink FilmPEPE
Machine Dimensions2710×1750×1775mm2800×950×1700mm
Wooden Case Dimensions2810 x 1850 x 1925mm
2900×1150×1850mm
Gross/Net Weight480/410kgs630/555kgs
