Fully-auto Side Sealer & Shrink Tunnel
Fully Automatic Side Sealing Machine incorporates internationally advanced high-speed side sealing technology and is specially developed for large packaging items as a new automated sealing solution. It utilizes two rolls of film each at the top and bottom, with the film synchronized to the product's movement. As the product advances, the side sealing system thermally seals and cuts the upper and lower film layers simultaneously, delivering superior sealing performance.

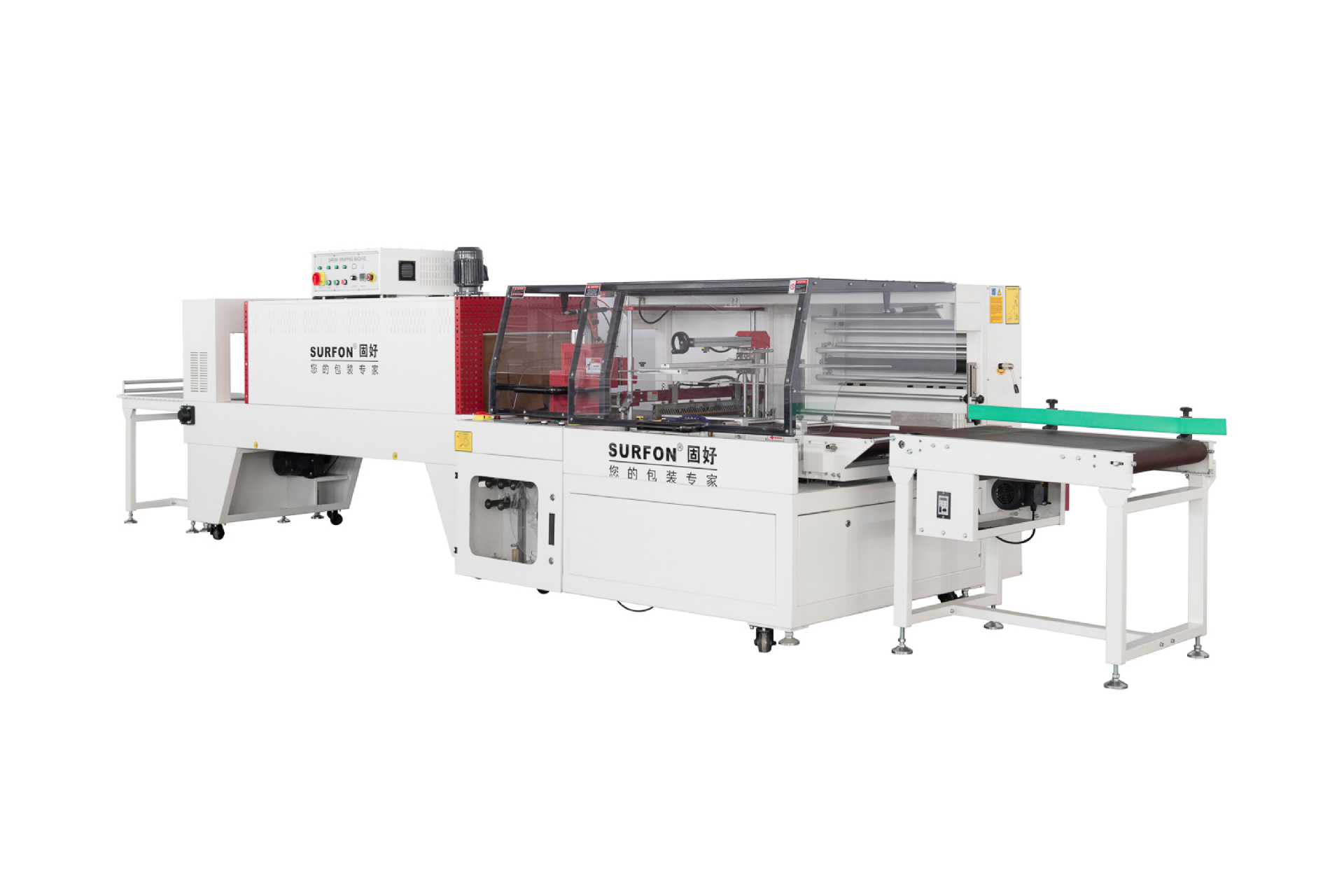

Fully Automatic Side Sealer and  Shrink Tunnel

Core Technology & Performance

  • Incorporates internationally advanced high-speed edge sealing technology, specially developed for large packaging items

  • Utilizes dual top and bottom film rolls with perfect film-product synchronization

  • Performs simultaneous thermal sealing/cutting during product advancement

  • Delivers superior sealing quality

Technical Advantages

  • Continuous sealing operation without product length limitations

  • Ideal for elongated/wide/heavy products requiring full enclosure:

    • Doors, furniture, ladders, mattresses

  • Automatic waste film winding for easy cleanup

  • Adjustable edge seal positioning for optimal sealing strength

Specifications & Customization

  • Compatible with PE shrink film (0.04-0.18mm thickness)

  • Optional add-ons: front/rear conveying mechanisms, color film positioning

  • User-friendly touchscreen intelligent operation interface

  • Siemens PLC controller for mechanical-electrical-pneumatic integration

  • Imported horizontal/vertical photoelectric sensors with switchable modes


ModelGH-3015LSF-5030LG
Power2.5kw16kw
VoltageAC 380/220V 3PH 50/60HzAC 380/220V 3PH 50/60Hz
Max. Packing Size L×W×H

L(unlimited),W+H≤440mm,

H≤150mm

/
Heat Tunnel Dimensions/1500×500×300mm
Cross Sealing Blade Dimensions490mm/
Air Temperature300℃300℃
Workbench Height825±25mm825±25mm
Packing Speed15m/min.0~18m/min.
External Air Supply6-8kg/cm2/
Shrink FilmPOFPE
Machine Dimensions1748 x 975 x 1650mm1800×985×1260mm
Wooden Case Dimensions1850 x 1075 x 1800mm1900×1085×1460mm
Gross/Net Weight575/525kgs485/450kgs
