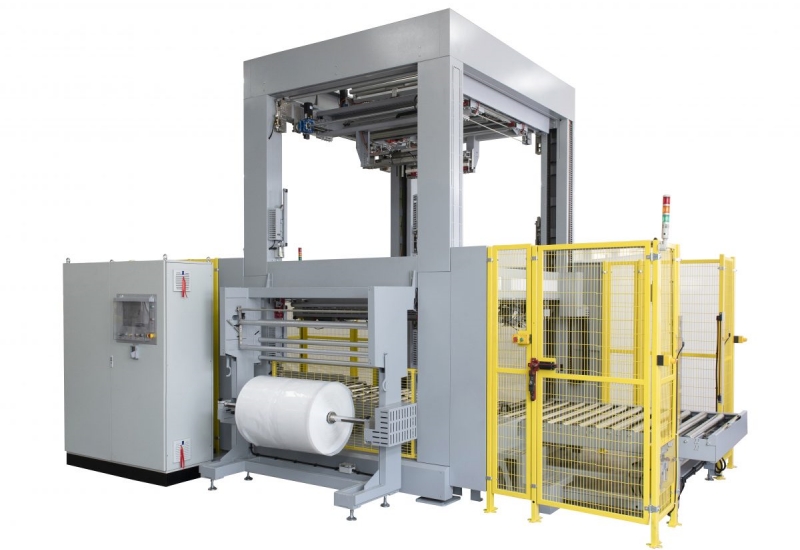

Fully-auto Cold Stretch Hooding Machine
Maximum Capacity: 60-90 Pallets/Hour (varies slightly depending on stacked load height).
The top-sealed film forms a waterproof enclosure.
Ideal for transportation, the tightly shrunk load ensures secure stacking and effectively prevents shifting or collapse.

Technical Features & Benefits

·         For 60 ~ 200 micron thickness PE stretch hood film;

·         The products which are packaged together by the film are very suitable for transportation. And it can effectively prevent product shedding;

·        Stretch hood film offers higher transparency than traditional PE film, ensuring barcodes and trademarks are clearly visible, which enhance the product's advertising and visual display value;

·        The film sealed on the top becomes a bag which can protect the products better;

·        Easy servicing: The unique feature of lowering the top stretch system of the machine descends to floor level for even easier, faster and safer service and maintenance. Film rolls replacement take place at floor lever by automatic lifting;

·        The Space saving: Space is often at a premium in today's production especially in the small production area. Specially designed for operating efficiency and reliability with energy-saving features;

·        Cold stretch hood film doesn't need heat energy. It is very eco-friendly and keep the products away from water, dust and UV rays;

·        The packaging speed is about 50~80 pallets/hour, which can improve packaging efficiency and save labor;

·        The conveyor can be chain, chain plate or roller type;

·        Film saving: The top film unwinding feature saves up to 10% film and ensure slow film consumption. It eliminates fragile film on the loading corner and makes the film approx. 30% thicker than normal on the corners of the pallet;

·        The upright packing power is strong; when the pallet leans the items keep standing;

·        Energy Conservation: Sustainable development and ecological protection are a global priority. We take concrete actions to deliver more eco-friendly packaging solutions.


 Model         SF-CS
Power16.5KW
Power SupplyAC 380V 3PH 50HZ
External Air Supply6-8 KG/CM2

Maximum Packaging Dimensions

 L×W×H

1200×1200×1800mm
Packaging Speed50-80 pallets/hour
Maximum Load Capacity3000kgs
Packaging Speed650±25mm
Shrink FilmPE Stretch Hood Film

Machine Dimensions

 L×W×H

6700×4200×4250mm
Wooden Case Dimensions55CBM (One 40HC)
Gross/Net Weight7200/6500kgs
