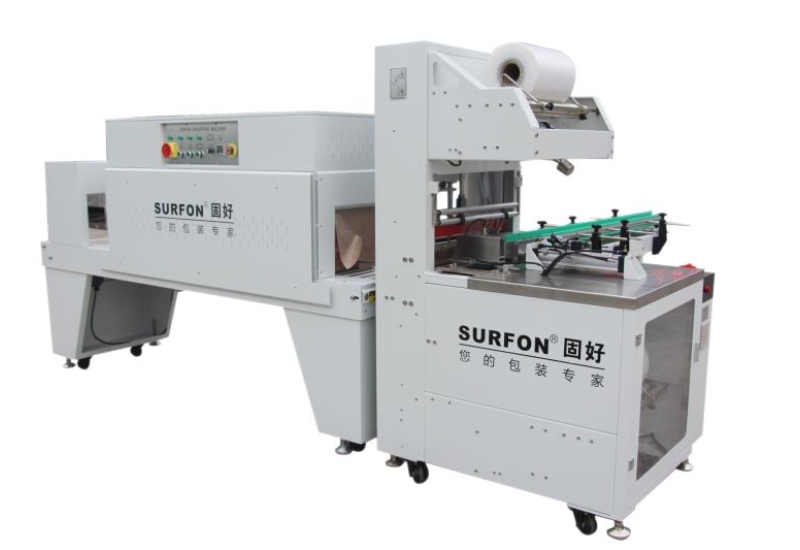

Fully Automatic Tape Cuff-Type Sealing and Shrinking Packaging Machine
GH-6030AE+SF-5030E Fully Automatic Cuff-Type Packaging Machine is designed for the packaging of individual or multiple tapes.
  • GH-6030AE+SF-5030E Fully Automatic Cuff-Type Packaging Machine is designed for packaging individual or multiple tapes.

  • The entire workflow adopts advanced German technology based on European standards.

  • Provides counting, single-row automatic sealing, and shrinking functions.

  • PTFE-coated blades ensure high-temperature resistance and non-stick performance.

  • The sealing and constant temperature system ensures straight, secure, and aesthetically pleasing cuts.

  • The machine utilizes an advanced PLC and touch screen for precise operation.

  • The
    tunnel employs stainless steel heating elements, ensuring long service
    life; shrinking temperature and conveyor speed are adjustable and
    stable.

  • The conveyor unit offers Teflon mesh-type or rod-type chain options.

  • An intelligent digital temperature controller and hot air circulation system guarantee accurate temperature control.

  • Ensures neat packaging of goods, suitable for long-distance transportation.


ModelGH-6030AESF-5030E
Power1.5kw16kw
VoltageAC220/380V 1/3PH 50/60HzAC220/380V 3PH 50/60Hz
Maximum Packaging Dimensions400x300x300mm1500×400×200mm
Heat Tunnel Dimensions/1200x500x300mm
Cross Sealing Blade Dimension670mm/
Air Temperature0-300℃0-300℃
Feeding Conveyor Dimensions1500mm/
Workbench Height750±50mm750±50mm
Packaging Speed0-12 m/min.0-20 m/min
External Air Supply6-8kg/cm2/
Shrink FilmPEPE
Machine Dimensions1250 × 750 ×1855mm2500x800x1650mm
Wooden Case Dimensions1300×800×2005mm , 2050×250×550mm2550x900x1800mm
Gross/Net Weight390kgs/450kgs500kgs/450kgs
