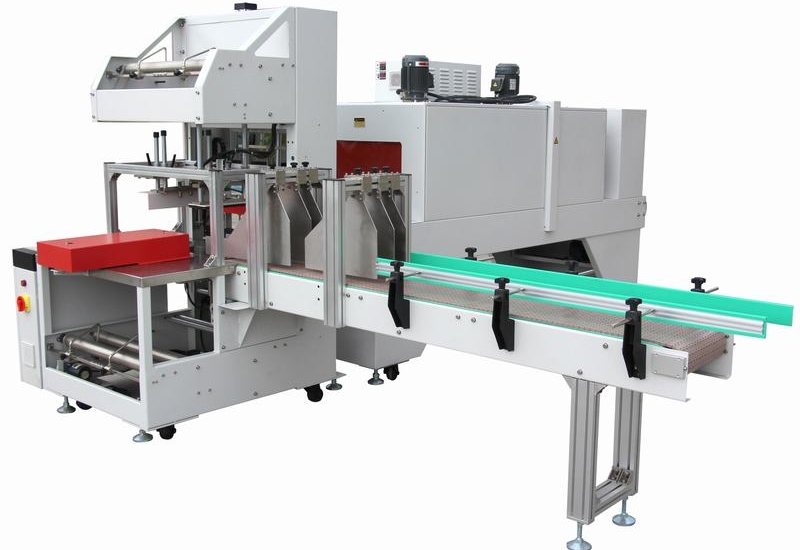

GH-6030AH + SF-6040E Fully Automatic Cuff-Type Packaging Machine
is designed for single bottles or bottomless products. When integrated
with a production line, it automatically performs feeding, film
wrapping, sealing, cutting, shrinking, and cooling, forming a completely
automated packaging system without manual operation. It supports
multiple packaging configurations, including 6 bottles (2×3), 8 bottles
(2×4), 9 bottles (3×3), 12 bottles (3×4), 15 bottles (3×5), 18 bottles
(3×6), 20 bottles (4×5), and 24 bottles (4×6).

GH-6030AH
incorporates internationally advanced technology and manufacturing
processes, ensuring stable and reliable performance with automated
functions such as two-day production tracking.

Equipped
with a Schneider PLC programmable controller and an intelligent touch
screen, it achieves full integration of mechanical, electrical, and
pneumatic systems.

The
machine can perform bottomless shrink packaging in two, three, or four
rows based on production requirements. Switching packaging
configurations only requires adjusting the selector switch on the panel
and replacing the corresponding guide blocks.

A
geared motor ensures smooth and stable feeding and film conveyance
without vibration. For printed film packaging, a color mark positioning
system can be added for precise alignment.

Specially designed sealing blades ensure strong sealing lines, no cracking, and anti-stick performance.

The feed conveyor can be customized for left-side or right-side feeding based on site requirements.

SF-6040E
uses dual air-circulation motors to ensure even heat distribution in
the chamber, resulting in aesthetically pleasing shrinking effects.

Solid
steel rods sheathed in imported silicone tubes form a durable chain-rod
conveyor system. The SF-6040E can be equipped with a close-shaft
function specifically designed for packaging smaller products.

An imported Schneider frequency converter enables stepless speed adjustment with stable performance.

The compact tunnel length significantly reduces overall power consumption while maintaining excellent packaging quality.

The machine is easy to operate and primarily suitable for PE shrink film.

Applicable
for collective packaging of beverages, daily chemicals, building
materials, food, etc., with or without paper trays, as well as for
sealing and shrinking individual or multiple combinations of appliances,
auto parts, furniture, flooring, and more.
