SF-400LA/SF-LAC Series Technical Specifications

Core Product Profile

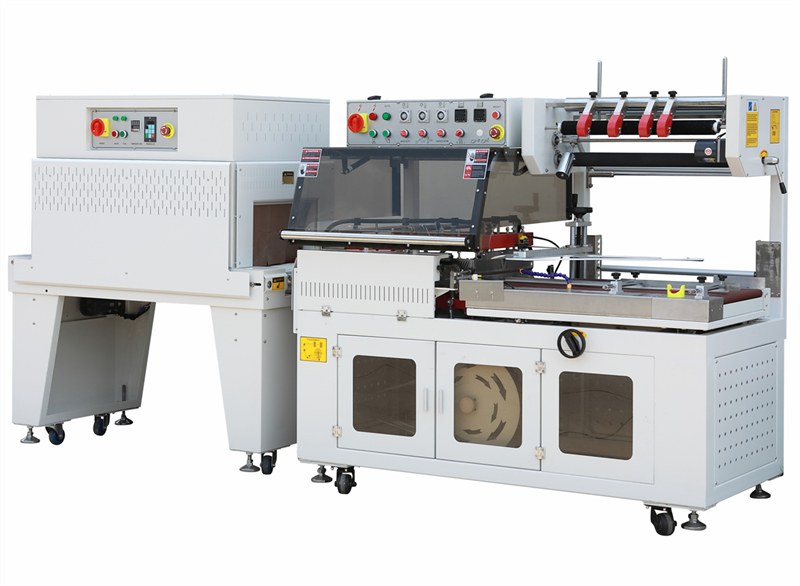

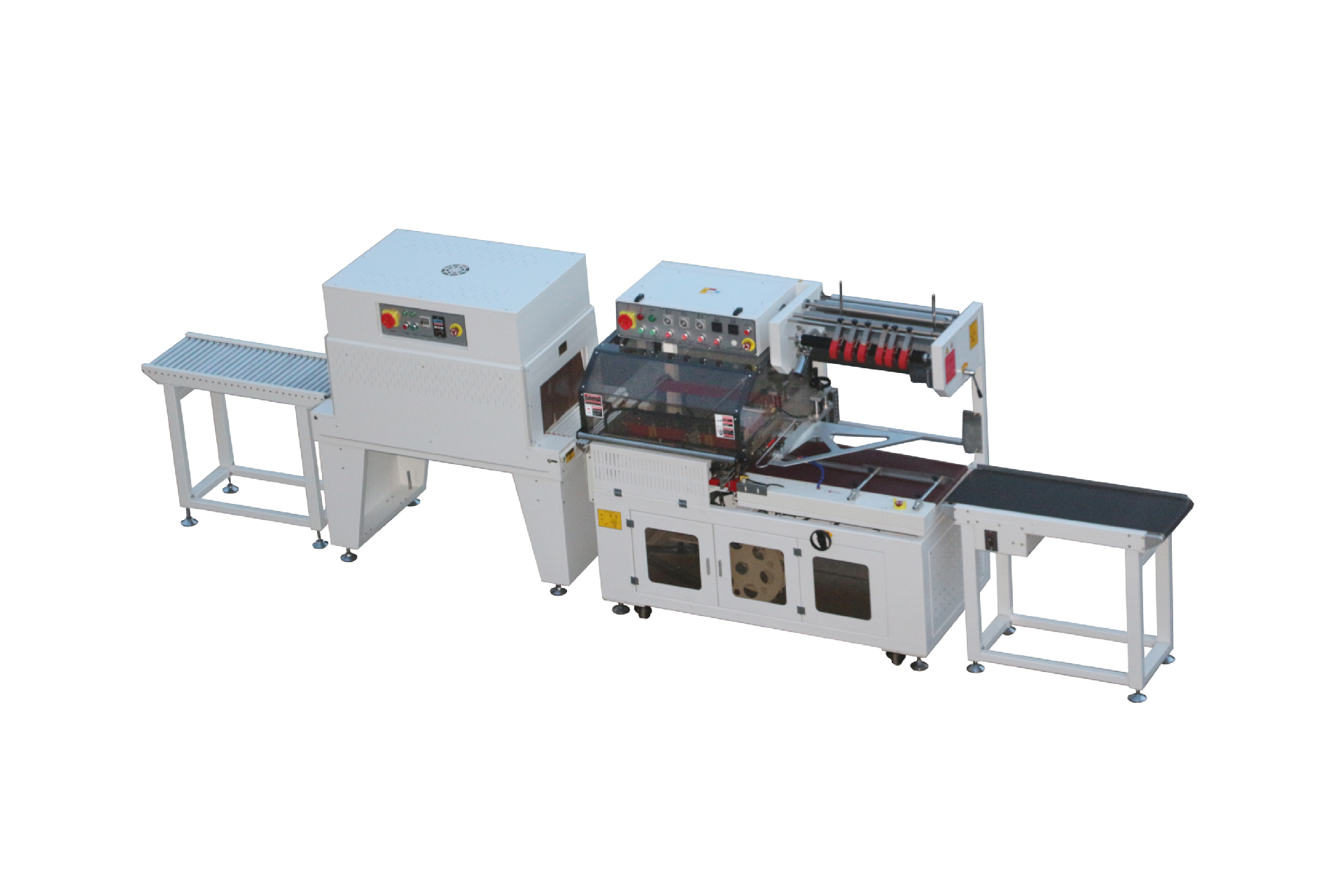

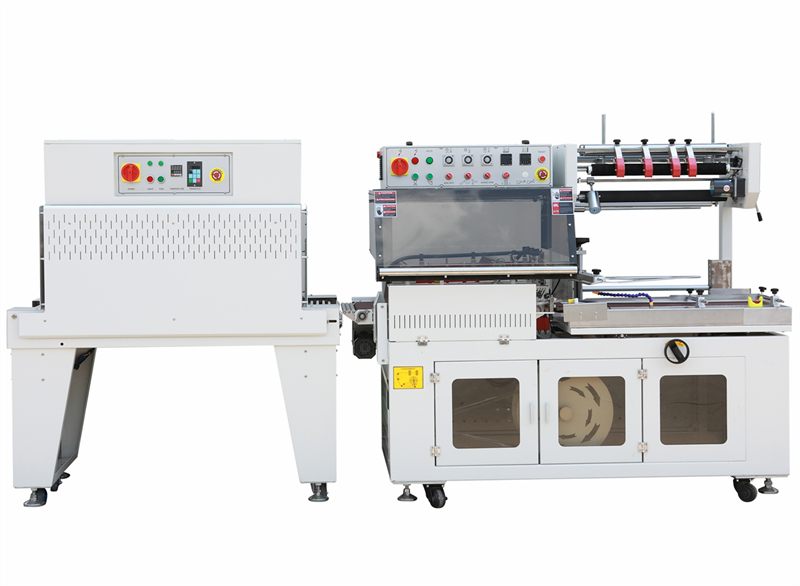

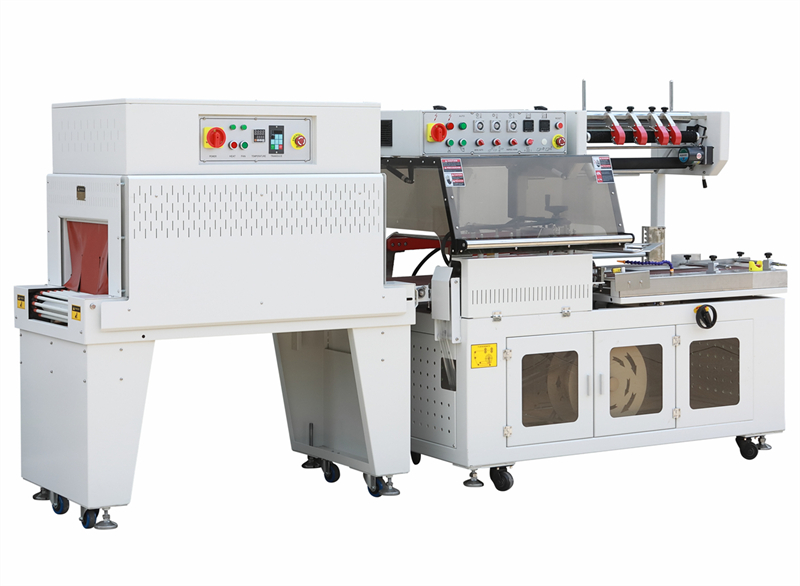

• SF-400LA
  is a fully automatic unmanned L-type sealing and cutting machine, ideal
  for high-volume production line packaging with exceptional efficiency

• Integrated automatic film feeding/perforation mechanism and manually adjustable film guiding system

• Versatile feed conveyor platform accommodates products of varying dimensions

• SF-400LAC model features specialized close-contact functionality for small-item packaging

Advanced Sealing System

• Sealing blade with DuPont Teflon coating and high-temperature resistant aluminum alloy

• Prevents cracking, charring, and smoking while ensuring zero contamination

Precision Detection System

• Imported photoelectric sensors (horizontal and vertical detection sets)

• Flexible switching capability between detection modes

• Ensures reliable sealing performance for thin and small packaging items

Automated Operation Features

• Automatic feeding with length adjustment via photoelectric sensor and timer integration

• Induction motor-driven automatic waste film winding system

• Manual wheel adjustment for quick size changes without mold replacement

Temperature Control & Safety

• Original "AUTONICS" PID digital temperature controller

• Highly responsive and precise sealing blade temperature control

• Built-in blade protection prevents accidental product damage

• Polycarbonate protective shield with automatic alarm function

Specialized Functions

• Specially designed film synchronization mechanism prevents misalignment

• Optional tear-notch functionality available

• Full production line integration capability for unmanned operation

• Supports combination packaging for promotional effects

Industry Applications

• New energy, food, cosmetics, printing, pharmaceuticals, building materials

• Financial sector, e-commerce logistics, hardware industries

• Suitable for ultra-large volume shrink packaging applications

SF-4525 Shrinking Tunnel Features

• Stainless steel heating elements with automatic heat dissipation

• Extends machine service life by over 3 times

• Adjustable temperature and conveyor speed with stable performance

• Creates sealed, dust-proof and moisture-resistant packaging

Material Compatibility & Performance

• Compatible with POF, PP, OPS and cross-linked films

• High-power circulation motor ensures even heat distribution

• Solid 45# steel roller shafts with silicone sleeves

• Withstands heavy loads while preventing film scorching

System Integration

• Compatible with fully automatic and semi-automatic sealing machines

• Enables simplified operational workflow
