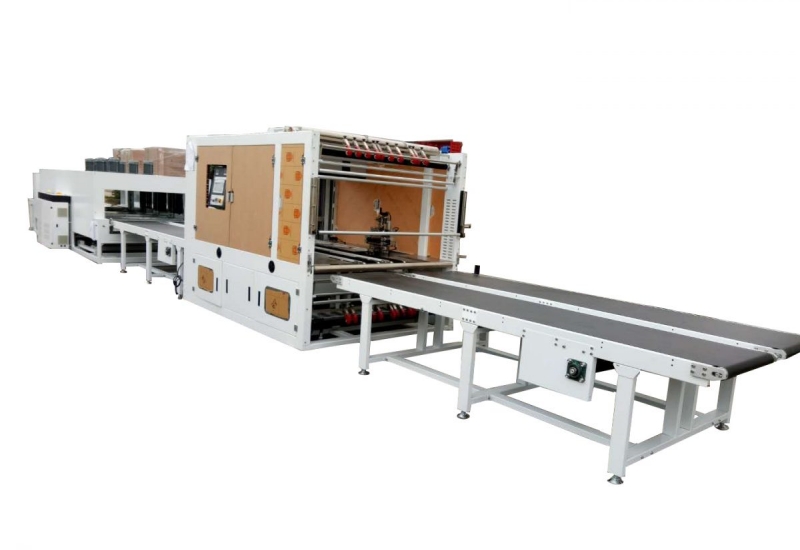

GH-6030AF
is a fully automatic horizontal dual-side sealing machine specially
developed for large and oversized items. It employs advanced high-speed
dual-side sealing technology with dual upper and lower film rolls, where
the film advances synchronously with the product. As the item moves
forward, the side sealing system simultaneously seals and cuts, ensuring
excellent sealing integrity between the upper and lower film layers.

• Specialized for Large Items:
  Continuously seals without product length restrictions, ideal for long,
  wide, and heavy PE film fully enclosed packaging of items such as
  doors, furniture, ladders, and mattresses.

• Convenient Operation: Automatic waste film winding for easy cleanup.

• Flexible Sealing: Side sealing line height adjustable according to product specifications for optimal sealing strength.

• Film Compatibility: Suitable for PE shrink film with thicknesses of 40~120 microns.

• Customizable Options: Infeed/outfeed conveyors and color film positioning functions can be added per customer requirements.

• User-Friendly Interface: Humanized touchscreen intelligent operation panel.

• Integrated Control: Siemens PLC controller for mechanical, electrical, and pneumatic integration.

• Precision Detection: Imported photoelectric sensors for horizontal and vertical cross-section detection to accommodate different products.

• Accessory Shrinking Machine (SF-20040E):

  • Imported dual air-circulation motors for even heat diffusion and excellent shrinking results.

  • Chain-rod conveyance with solid steel rods sheathed in durable imported silicone tubes.

  • Option to add a high-density roller for small products.

  • French "Schneider" frequency converter for stepless speed control.

  • U-shaped
    stainless steel 304 heating elements and 5-9cm thick insulation cotton
    for energy efficiency and extended machine life while maintaining
    packaging quality.

• Film Performance: High-strength PE film suitable for long-distance transport and frequent handling, offering damage and moisture resistance.
