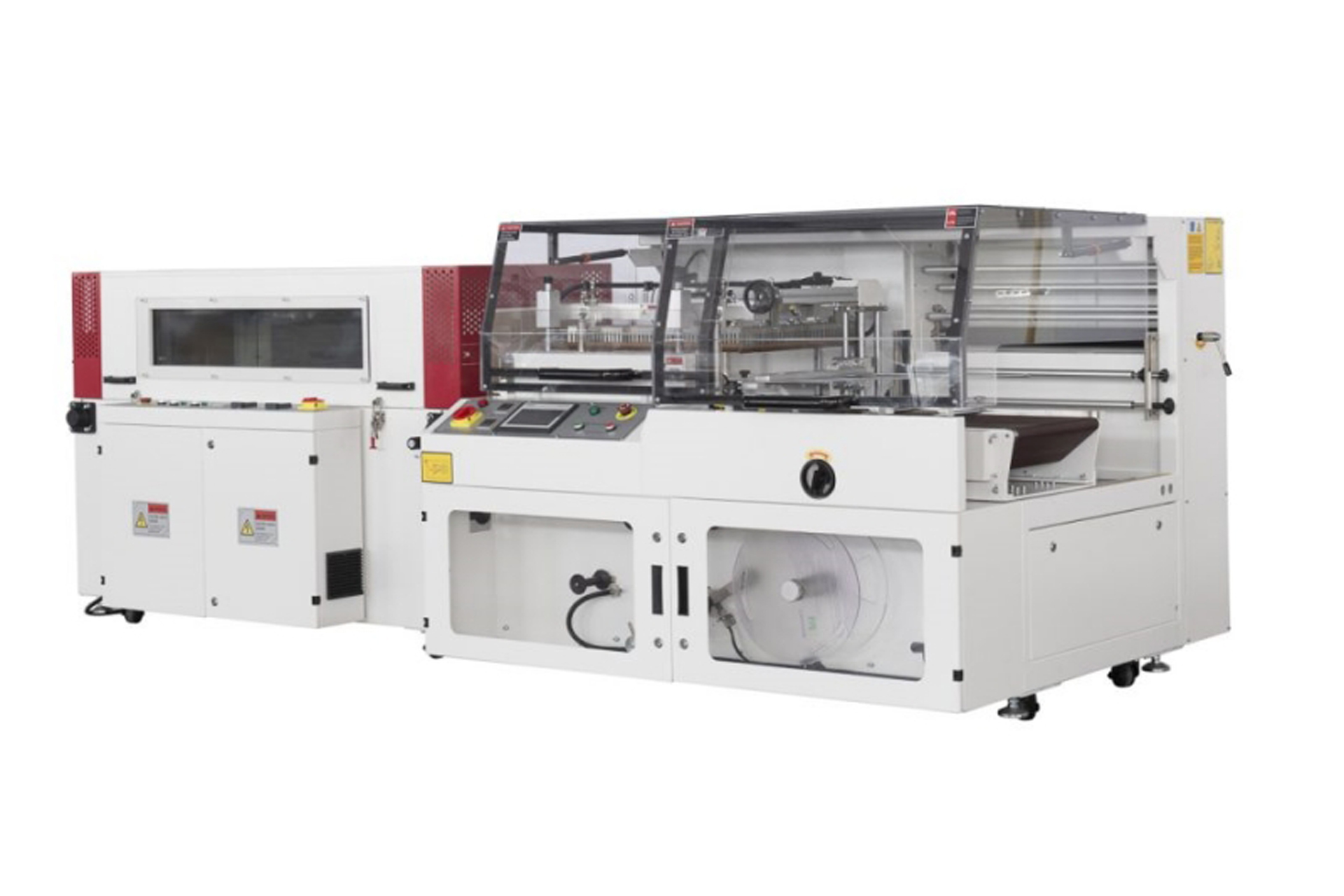

Fully Automatic Vertical Labeling Smart All-in-One Machine

Fully Automatic Vertical Labeling Smart All-in-One Machine
Utilizes shrink film to automatically wrap around products, followed by heating to tightly shrink the packaging material. Equipped with photoelectric sensors for automatic product detection, enabling unmanned packaging operations with high efficiency. Suitable for packaging various types, sizes, and shapes of products.
Widely applicable to high-volume industries such as food, pharmaceuticals, aluminum profiles, pipes, printing, photo frames, electronics, daily chemicals, and cosmetics. Provides moisture resistance, contamination protection, and safeguards against external impacts to ensure product integrity.

More >

Contact>

Adopts Siemens programmable logic controller to achieve integration of mechanical, electrical, and pneumatic systems.
Photoelectric switch automatically detects product positioning.
Utilizes imported components to ensure high-speed operational stability.
Sealing line height automatically adjusts according to the packaged product's dimensions.
L-shaped cutting blade employs a vertical drive system, ensuring straight and robust sealing lines.
Wide packaging range, capable of handling products of various sizes and shapes.
Packaging capacity of up to 1-30 pieces per minute.
Cutting blade supports automatic vertical sealing height adjustment with switchable control systems.
Specially
designed V-segment sealing blade ensures strong, non-splitting seals.
The blade is coated with high-temperature-resistant Teflon non-stick
material, preventing residue buildup and odor during sealing.
Servo-controlled blade movement enables precise sealing and cutting.
Limit switch film feeding significantly reduces film waste.
Synchronous belt-driven film feeding mechanism ensures stable, precise, and noiseless operation.
Genuine
Japanese imported OMRON digital temperature controller provides
accurate temperature display for sealing and shrinking processes.

Technical Introduction of Fully Automatic L-Type Vertical Sealing and Cutting Machine
Parts	Detailed Specifications	Technical Parameter Description
Power Supply	1& 220V 50/60Hz ≤3.5kw
Sealing System	Heat Source	Utilizes stainless steel heating tubes for extended service life.
	Sealing Blade	Equipped with anti-stick, high-temperature resistant alloy sealing blades, externally coated with DuPont Teflon non-stick coating.
	Sealing Blade Temperature Control	Utilizes Japan "OMRON" digital temperature controllers and imported thermal sensors, with adjustable temperature range from ambient to 300°C.
	Sealing Blade Dimensions	Height Adjustment: 5-170mm Maximum Sealing Dimensions: L+H>700, H+W<380, H<170mm Sealing Blade Dimensions: 800mm (L) × 550mm (W)
	Sealing Blade Protection	Equipped with Germany "SICK" sensors to effectively prevent mis-sealing of packaged objects
	Drive System	SMC cylinders vertically drive the horizontal and longitudinal sealing blades, ensuring firm, stable, and secure sealing.
	Slide Rail	Japan: "THK" ensures smooth vertical movement of the sealing blade.
	Cutting Blade System	Utilizes "SMC" cylinders to ensure secure and precise sealing.
Conveyor System	Belt	German SICGLIN PU Conveyor Belt (White)
	Motor	Taiwan "Taibang" ensures smooth conveying.
	Detection Photoelectric Sensor	Utilizes American "Banner" photoelectric sensors for accurate and sensitive detection of product conveying and stopping.
Recycling System	Motor	Italy "Transmatic" ensures precise and uniform waste material recovery
	Sensor Switch	Utilizes Germany "SICK" technology for precise control of waste material recovery timing
Film Feeding System	Motor	Italy "Transmatic" ensures smooth film feeding
	Sensor Switch	Utilizes Germany "SICK" technology for precise control of film feeding length.
PLC	Siemens
Contactor	France Schneider
Intermediate Relay	France Schneider
Touchscreen	Siemens
Temperature Controller	Japan OMRON
Emergency Switch	Siemens
Punch	Multi-position punch to rapidly expel air from bags during shrinking.
Mechanical Component Materials	Carbon steel spray coating, with key components made of stainless steel plates and aluminum profiles to ensure structural robustness.
Machine Dimensions	146012501280mm（LWH Specific dimensions are subject to the physical product.）
Packaging Speed	Varies based on packaged product size (1-60 units/minute).
Cylinder Air Pressure	55psi,4kg/cm²
Surface Treatment Requirements	Anti-corrosion structural materials with surface spray coating or nickel plating treatment.
Machine Weight	850KG
Packing Specifications	Dimensions & Weight Range: Length: 150–780mm Height: 7–250mm Width: 150–600mm Weight: <15kg Key Constraints: Length + Height < 800mm Width + Height < 730mm Bag width ≥ 400mm
Film Roll Specifications	PE Film Roll Specifications: Max. Diameter: 400mm Thickness: 0.04–0.08mm Film Width: 450–950mm
