Fully Automatic Straight-Feed Cuff-Type Sealing and Shrinking Packaging Machine (Simplified Model)

GH-380AZS+SF-8050JE Fully Automatic Straight-Feed Cuff-Type Packaging Machine (Simplified Model) features a unique linear design and compact structure, minimizing floor space. It is particularly suitable for sites with limited space and products that do not require directional adjustments during packaging, offering exceptional convenience without constraints on product length. The machine can operate independently or be integrated into production lines to achieve fully automated unmanned operation through processes such as automatic feeding, film wrapping, sealing, shrinking, cooling, and shaping. It is cost-effective.

More >

Contact>

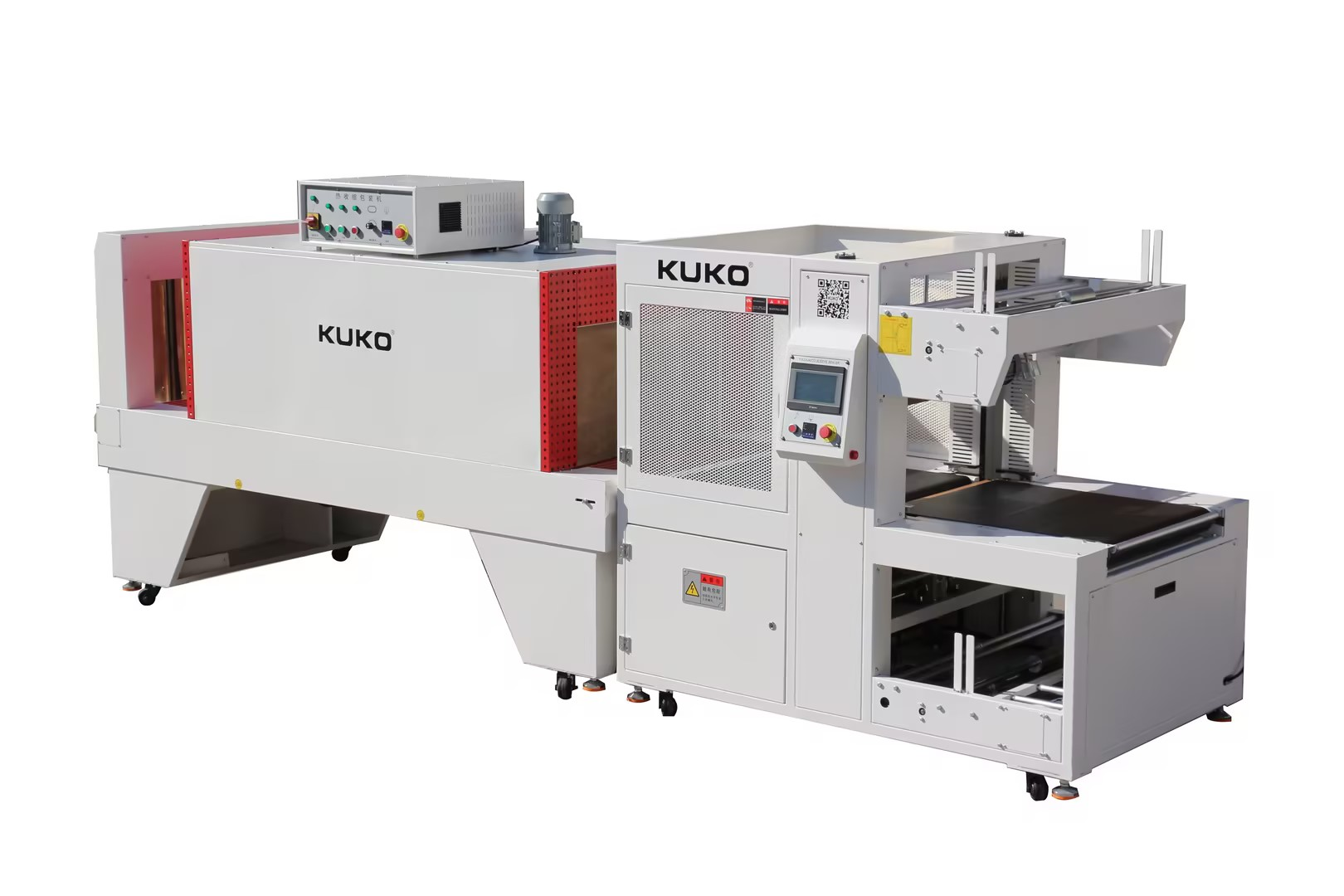

GH-380AZS+SF-8050JE Fully Automatic High-Speed Straight-Feed Cuff-Type Packaging Machine

Adopts
a unique linear design with a compact structure that minimizes floor
space. Ideal for confined workspaces and products requiring no
directional adjustments during packaging, offering exceptional
convenience without limitations on product length.
Capable
of independent operation or integration into production lines for fully
automated unmanned processes, including feeding, film wrapping,
sealing, shrinking, cooling, and shaping.
Incorporates internationally advanced technology and manufacturing processes, ensuring stable and reliable performance.
Equipped with a Taiwan Yonghong PLC programmable controller for integrated mechanical, electrical, and pneumatic control.
After specialized modifications, it can easily handle lightweight and small products.
Outperforms conventional side-feed machines in speed and operational coordination.
Features specially designed sealing blades for strong, crack-resistant, and non-stick seals.
Utilizes
imported photoelectric sensors for precise positioning, with two sets
of horizontal detection sensors tailored to the product.
Original imported conveyor belts ensure durability, with stepless speed adjustment via a frequency converter.
User-friendly control box simplifies operation.
Rear material pressing device prevents displacement of lightweight items during sealing.
SF-8050JE Extended Model: Dual air-circulation motors ensure even heat distribution in the chamber, delivering aesthetically pleasing shrinkage results.
Solid
steel rods sheathed in imported silicone tubes provide durable
chain-rod conveyance. The SF-8050JE can be equipped with a close-shaft
function for packaging smaller products.
Imported Schneider frequency converter enables stepless speed adjustment with stable performance.
Shortened tunnel length reduces overall power consumption while maintaining packaging quality.
Upgraded from pneumatic to electric cutting blades, eliminating the need for an air pump.
Simple operation, primarily suitable for PE shrink film.
Applicable
for collective packaging of beverages, daily chemicals, building
materials, food (with or without paper trays), as well as individual or
combined sealing and shrinking of appliances, auto parts, furniture,
flooring, etc.

Core Competitiveness Comparison

Advantage 1:
Servo motor and controller-driven cutting mechanism ensures faster
operation, smoother and more aesthetically sealed cuts, and higher
precision.
Conventional equipment:
Pneumatic cylinders and solenoid valves result in slower speeds,
inconsistent sealing, and compromised cut quality due to unstable air
supply.
Advantage 2: Servo control operates on 380V power without requiring an air source or compressor.
Conventional equipment:
Dependent on air compressors, which cause noise pollution, energy
inefficiency, and require maintenance—unsuitable for compact logistics
or cold chain packaging sites.
Advantage 3: Servo-controlled packaging speed ranges from 1 to 25 packs per minute.
Conventional equipment: Pneumatic systems typically achieve 1–12 packs per minute.

Fully Automatic High-Speed Cuff-Type Packaging Machine Technical Introduction: GH-380AZS
Parts	Detailed List		Technical Parameter Description
Power Supply/Power	1& 220V 50/60Hz ≤3.5kw
Sealing System	Heat Source		Utilizes stainless steel heating tubes for extended service life.
	Sealing Blade		Equipped with anti-stick, high-temperature resistant alloy sealing blades, externally coated with DuPont Teflon non-stick coating.
	Sealing Blade Temperature Control		Equipped with Japan "OMRON" digital temperature controllers and imported thermal sensors, adjustable temperature range: ambient temperature to 300°C.
	Sealing Blade Dimensions		Height Adjustment: 5-360mm Maximum Film Width: 780mm Sealing Blade Dimensions: L800mm
	Sealing Blade Protection		Equipped with Japan "Panasonic" protection system, effectively preventing accidental sealing of packaged objects.
	Drive System		Featuring We-con servo motors paired with Italian Transmatic reducers for vertical drive control of horizontal and longitudinal sealing blades, ensuring secure and stable sealing with robust performance.
	Slide Rail		Japan: "THK" ensures smooth vertical movement of the sealing blade.
	Cutting Blade System		Utilizes "Schneider" servo motor to ensure secure and precise sealing.
Conveyor System	Belt		PVC Conveyor Belt (Black)
	Motor		Shanghai "Xuntang" ensures smooth conveying.
	Detection Photoelectric Sensor		Utilizes Japan "Panasonic" photoelectric sensors for accurate and sensitive detection of product conveying and stopping.
Feeding Conveyor	Motor		Taiwan "Xuntang" ensures precise and uniform waste material recovery
	Sensor Switch		Utilizes Japan "Panasonic" technology for precise control of waste material recovery timing.
Film Feeding System	Motor		Shanghai "Hangxing" ensures smooth film feeding.
	Sensor Switch		Utilizes Germany "SICK" technology for precise control of film feeding length.
PLC	WeiKong
Contactors	ZhengTai
Intermediate Relay	OMRON
Touchscreen	WeiKong
Temperature Controller	ZhengTai
Emergency Switch	ZhengTai
Mechanical Component Materials	Carbon steel spray coating, with key components made of stainless steel plates and aluminum profiles to ensure structural robustness.
Machine Dimensions	180012501280mm（LWH Specific dimensions are subject to the physical product.）
Packaging Speed	Varies based on packaged product size (5-28 units/minute)
Cylinder Air Pressure	55psi,4kg/cm²
Surface Treatment Requirements	Anti-corrosion structural materials with surface spray coating or nickel plating treatment
Machine Weight	850KG
High-Speed Constant Temperature Shrinking Machine Technical Introduction: SF-8050JE
Parts	Detailed List	Technical Parameter Description
Heating System	Insulation Layer	Made of high-temperature-resistant white silica cotton, featuring low surface temperature during operation, reduced heat loss, and withstands temperatures up to 1260°C.
	Temperature Control	Japan "OMRON" Temperature Controller and Imported Thermal Sensor, Air Temperature -300°C
Conveyor System	Motor	Shanghai Hangxing Gearbox
	Frequency Converter	Zhongchen Frequency Converter ensures smooth conveying.
Air Circulation System	"SURFON" specially designed downward air circulation duct system ensures uniform product heating. High-power imported high-temperature resistant air circulation motors allow adjustment of wind speed, air volume, and direction inside the shrinking oven based on different products.
Control System	Contactors	ZhengTai
	Intermediate Relay	Japan“OMRON”
	Temperature Controller	ZhengTai
	Emergency Switch	ZhengTai
Machine Body (Optional 304 Stainless Steel)	Outer Panel	Uses ordinary carbon steel plates after bending, with surface spray coating treatment.
	Inner Panel	Uses galvanized sheets processed by hydraulic forming.
Shrink Film	PE 3-12 filaments/single film
Shrink Ratio	Lateral 20-65% Longitudinal 20-75%
Heat Tunnel Dimensions	L1800W800H500mm
Workbench Height	820MM+60MM
Machine Dimensions	L2800W1150H1750mm
Power Supply	3&380V/50Hz 20KW
Mechanical Line Speed	1-18 meters per minute (one-key adjustable)
