Semi-Automatic Cuff Sleeving and Shrinking All-in-One Machine (2-in-1)

Applications: Suitable for collective packaging (with or without paper trays) in industries such as beverages, daily chemicals, building materials, and food. Also applicable for sealing, cutting, and shrink wrapping of individual or combined items like electrical appliances, automotive parts, furniture, and flooring.

Product Advantages: Compact footprint; no air supply required; compatible with single-phase voltage.

More >

Contact>

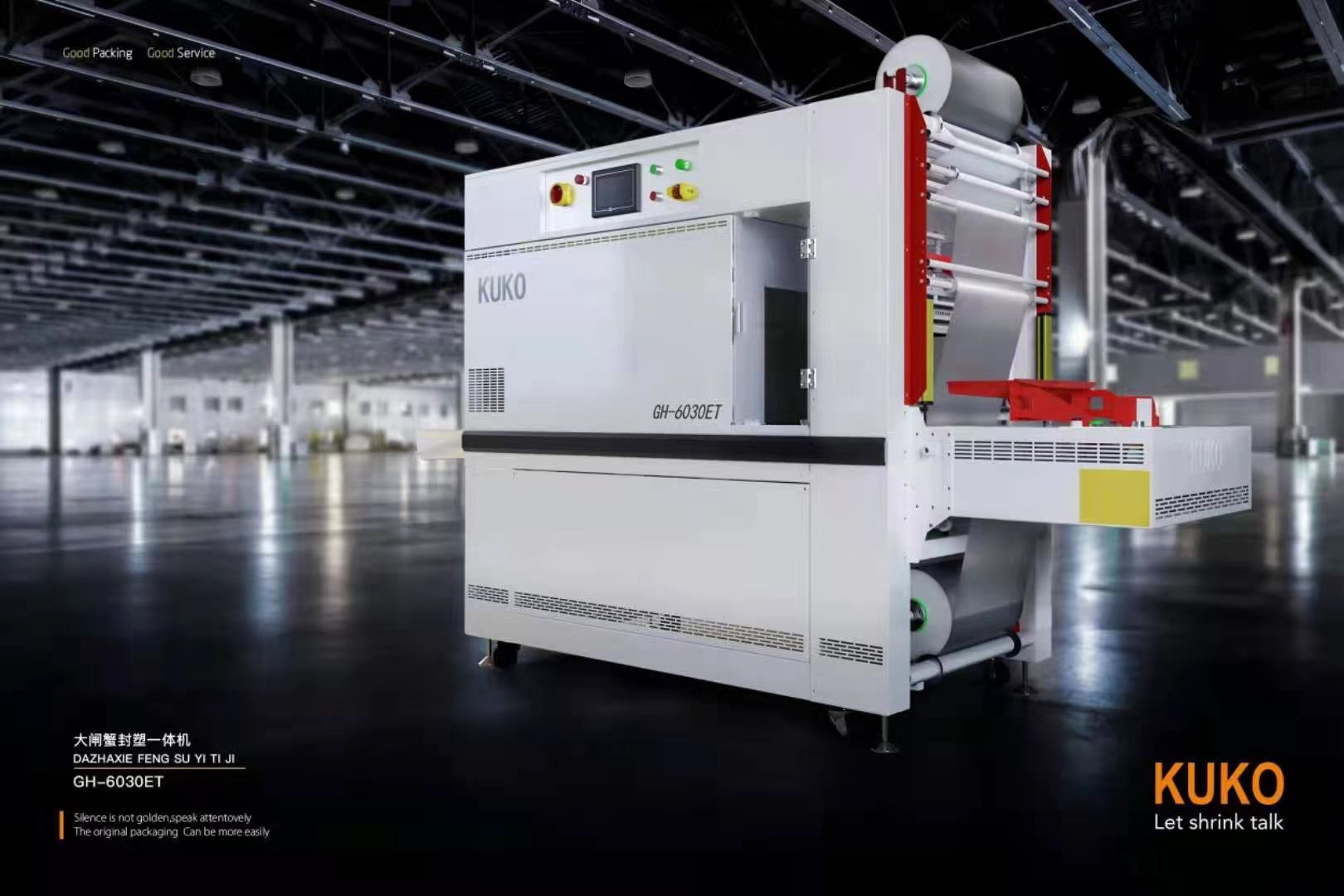

GH-6030ET Semi-Automatic Straight-Feed Cuff-Type Packaging Machine

Unique Linear Design
- Compact
  structure with small footprint, ideal for space-constrained
  environments and customers with moderate packaging capacity needs.
- No directional adjustment required during operation, unrestricted by product length.
International Technology
- Manufactured with imported technology and processes, ensuring stable and reliable performance.
Integrated Control System
- Taiwan Yonghong PLC programmable controller for seamless mechanical, electrical, and pneumatic integration.
Adaptability
- Special modifications enable easy packaging of lightweight and small products.
Specialized Sealing Blade
- Custom-designed blades ensure strong, crack-resistant, and non-stick seals.
Precision Detection
- Imported photoelectric sensors with dual horizontal detection groups for accurate positioning.
Durable Conveyance
- Imported conveyor belts with long service life; stepless speed adjustment via frequency converter.
User-Friendly Operation
- Ergonomically designed control box for intuitive use.
Stability Assurance
- Rear material pressing device prevents displacement of lightweight items during sealing.
Robust Conveyor System
- Solid steel rods sheathed in imported silicone tubes for chain-rod conveyance, designed for compact spaces and smaller products.
Stable Speed Control
- Imported Schneider frequency converter enables stepless speed adjustment with consistent performance.
Energy Efficiency
- Short machine length reduces overall power consumption while maintaining packaging quality.
Ease of Use
- Simple operation, compatible with PE shrink film.
Versatile Applications
- Suitable
  for collective packaging (with or without paper trays) in beverages,
  daily chemicals, building materials, and food industries. Also ideal for
  sealing and shrinking individual or combined items like appliances,
  auto parts, furniture, and flooring.

Product Advantages:

Compact footprint
No air supply required
Compatible with single-phase voltage

Semi-Automatic 2-in-1 Cuff Packaging Machine Technical Introduction
Parts	Detailed Specifications		Technical Parameter Description
Power Supply	1& 220V 50/60Hz ≤3.5kw
Sealing System	Heat Source		Utilizes stainless steel heating tubes for extended service life.
	Sealing Blade		Equipped with anti-stick, high-temperature resistant alloy sealing blades, externally coated with DuPont Teflon non-stick coating.
	Sealing Blade Temperature Control		Utilizes Japan "OMRON" digital temperature controllers and imported thermal sensors, with adjustable temperature range from ambient to 300°C.
	Sealing Blade Dimensions		Height Adjustment: 5-300mm Maximum Film Width: 580mm Sealing Blade Dimensions: L670mm
	Sealing Blade Protection		Utilizes Germany "SICK" to prevent mis-sealing of packaged objects.
	Drive System		Transmatic worm gear motor vertically drives the horizontal and longitudinal sealing blades, ensuring firm, stable, and secure sealing.
	Slide Rail		Japan: "THK" ensures smooth vertical movement of the sealing blade.
	Cutting Blade System		Utilizes "SICK" proximity photoelectric sensors for blade protection, preventing accidental product cutting.
Conveyor System	Rod Insertion		600MM*10MMCarbon Steel Threading Rod
	Motor		Taiwan "Taibang" ensures smooth conveying
	Detection Photoelectric Sensor		Utilizes Japan "Panasonic" photoelectric sensors for accurate and sensitive detection of product conveying and stopping.
Feeding Method	Motor		Taiwan "Taibang" ensures precise and uniform waste material recovery.
	Electric Feeding		Manually place the material on the worktable and press the button to complete feeding.
PLC	YongHong
Contactor	France Schneider
Intermediate Relay	France Schneider
Touchscreen	YongHong
Temperature Controller	Japan OMRON
Emergency Switch	Siemens
Film Width	Maximum Width：550MM
Mechanical Component Materials	Carbon steel spray coating, with key components made of stainless steel plates and aluminum profiles to ensure structural robustness.
Packaging Speed	Varies based on packaged product size (4-8 units/minute)
Shrink Heating System	Insulation Layer	Made of high-temperature-resistant white silica cotton, featuring low surface temperature during operation, reduced heat loss, and withstands temperatures up to 1260°C.
	Temperature Control	Japan "OMRON" temperature controller and imported thermal sensor, air temperature adjustable from ambient to 300°C.
Air Circulation System	"SURFON" specially designed downward air duct system ensures uniform product heating. High-power imported high-temperature resistant air circulation motors allow adjustment of wind speed, air volume, and direction inside the shrinking oven based on product requirements.
Machine Body (Optional 304 Stainless Steel)	Outer Panel	Uses ordinary carbon steel plates after bending, with surface spray coating treatment.
	Inner Panel	Uses galvanized sheets processed by hydraulic forming.
Shrink Film	PE 3-12 filaments/single film
Shrink Ratio	Lateral 20-65% Longitudinal 20-75%
Heat Tunnel Dimensions	L1800W600H500mm
Workbench Height	820MM+60MM
Machine Dimensions	L2440W930H1675mm
Power Supply	3&380V/50Hz 15KW
Mechanical Line Speed	1-12 meters per minute (one-key adjustable)
