Semi-Automatic Cuff-Type Sealing and Shrinking Packaging Machine
  • GH-6030 uses imported motors for more stable pushing and sealing performance.

  • Specially designed sealing blades ensure solid sealing lines, no cracking, and anti-stick properties.

  • The use of imported electrical components reduces operational failures.

  • A
    hidden motor mechanism significantly enhances operational convenience.
    The rear material pressing device ensures lightweight items remain
    stable during packaging.

  • The front fixing frame is adjustable, allowing packaging of products with different shapes.

  • SF-6040E
    adopts dual air-circulation motors to ensure even heat distribution in
    the chamber, resulting in aesthetically pleasing shrinking effects.

  • Solid
    steel rods sheathed in imported silicone tubes and chain-driven
    conveyance ensure durability. The SF-6040E can be equipped with a
    density shaft function, specifically designed for packaging smaller
    products.

  • The conveyor speed is controlled by a frequency converter for stepless adjustment.

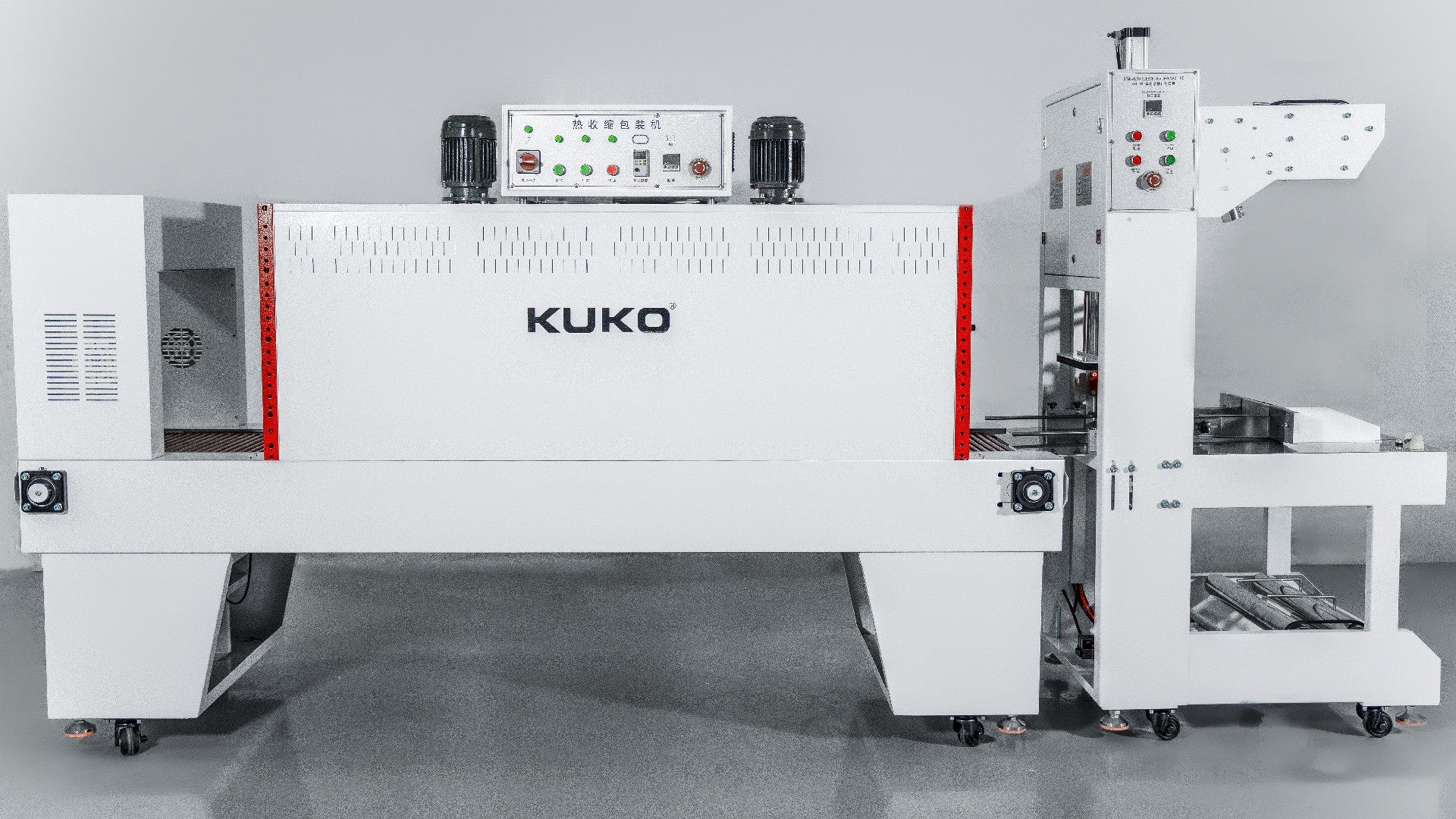

  • GH-6030+SF-6040E
    is an economical model in the GH series cuff-type shrink packaging
    machines. It is simple to operate: just press the button, and the
    machine automatically seals, after which the product enters the heat
    shrink packaging machine.

  • The machine primarily uses PE shrink film.

  • Widely
    used for sealing and shrinking packaging of beverages, daily chemicals,
    building materials, food (with or without paper trays), as well as
    individual or combined items like home appliances, auto parts,
    furniture, and flooring.


ModelGH-6030SF-6040E
Power1kw28kw
VoltageAC220V 1/3PH 50/60HzAC380V 3PH 50/60Hz
Maximum Packaging Dimensions
LxWxH
500×300×300mm1500×500×300mm
Heat Tunnel DimensionsLxWxH/1800×600×400mm
Cross Sealing Blade Dimensions670mm/
Air Temperatur0-300℃0-300℃
Workbench Height820±50mm820±50mm
Packaging Speed5-8m/min.0-15m/min
External Air Supply6-8kg/cm2/
Shrink FilmPEPE

Packaging Speed

LxWxH

1000×850×1991mm2800×1050×1750mm

Wooden Case Dimensions

LxWxH

1050×900×2141mm2850×1100×1900mm
Gross/Net Weight350/300kgs625/565kgs
