Specially designed for various bottle and cup types, ensuring smooth, even, and deformation-free label shrinking.
Close-shaft conveyor system guarantees stable passage of packaged items.
Imported components ensure equipment reliability.

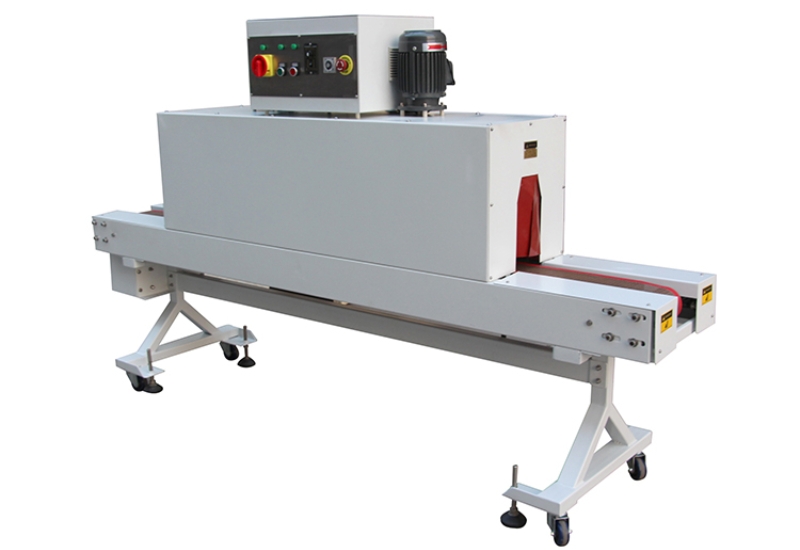

Hot air circulation shrinking system
is primarily used for label shrinking on bottle-shaped, can-shaped,
barrel-shaped, and cup-shaped products, and can also handle shrinking on
bottle bodies, bases, or necks.
Wide applicability
in industries such as food, beverages, pharmaceuticals, cosmetics, and
pesticides, for heat shrinking labels on glass bottles, plastic bottles,
paper cups, and other containers after labeling.
Model | SF-1230 |
Power | 12w |
Power Supply | AC380V 3PH 50/60Hz |
Maximum Packaging Dimensions | φ100×H280mm |
Heat Tunnel Dimensions LxWxH | 1500×120×300mm |
Heat Tunnel Dimensions | 20-40m/min |
Shrink Film | PET/PVC |
Machine Dimensions LxWxH | 1800×610×1550mm |
Wooden Case Dimensions LxWxH | 1850×660×1700mm |
Gross/Net Weight | 240/210kgs |
