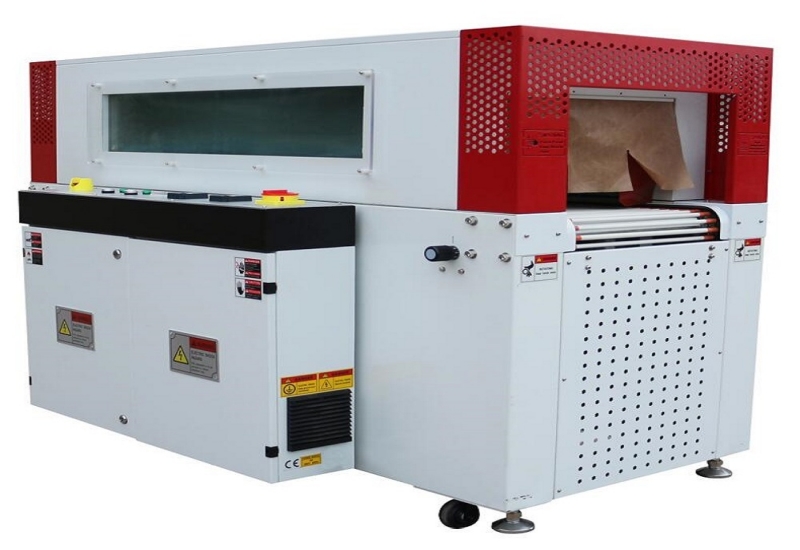

Premium Heat Shrink Packaging Machine SF-5030LG
SF-5030LG incorporates advanced air circulation technology and is uniquely designed and manufactured with improvements, allowing adjustable airflow direction for excellent shrinking results.
  • SF-5030LG
    integrates advanced air circulation technology and is uniquely designed
    and manufactured with improvements, featuring adjustable airflow
    direction for excellent shrinking results.

  • Stainless steel heating tubes offer extended service life and high energy efficiency.

  • Equipped with imported Schneider frequency converters for stepless speed adjustment, ensuring stable speed control performance.

  • Imported thermal insulation curtains significantly reduce heat loss.

  • Shrinking temperature, conveyor speed, and airflow volume are all adjustable.

  • A viewing window allows clear observation of the shrinking process.

  • The
    conveyor uses newly designed rollers sheathed in imported fiber
    sleeves, which are heat-resistant, wear-resistant, non-scalding to the
    film, deformation-resistant, and durable. The rollers can be set to
    rotate or remain stationary to meet the shrinking requirements of
    different products.

  • This machine is suitable for use with POF, PVC, PP, and other shrink films.


Model

SF-5030LG

Power

16kw

Power Supply

AC380V 3PH 50Hz

Heat Tunnel Dimensions

L×W×H
1500X500X300mm

Air Temperature

0-300℃

Cross Sealing Blade Dimensions

750±50mm

Packaging Speed

0-15m/min.

Maximum Load Capacity

25kgs

Shrink Film

POF, PVC

Machine Dimensions

L×W×H
1730×790×980mm

Wooden Case Dimensions

L×W×H
1780×840×1130mm

Gross/Net Weight

470/420kgs
