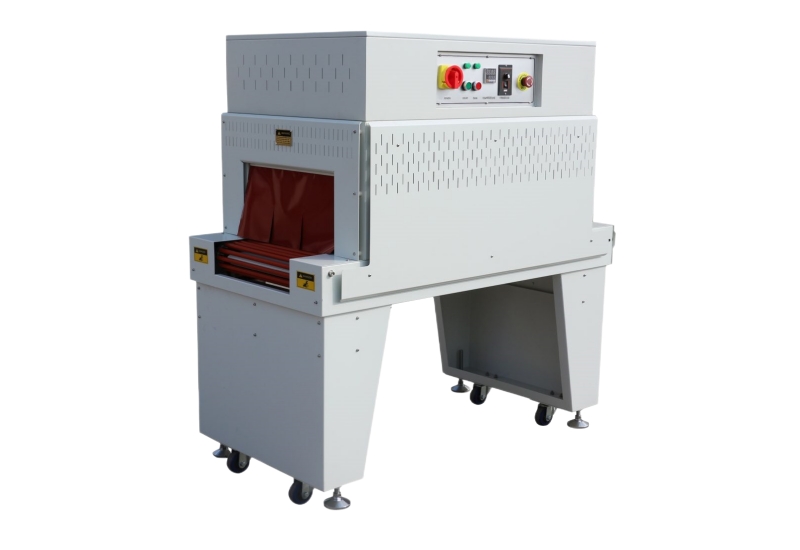

Standard Constant Temperature Heat Shrink Packaging Machine
SF-4525 utilizes stainless steel heating tubes and an automatic heat dissipation function, extending the machine's service life by over three times. The shrinking temperature and conveyor speed are adjustable, ensuring stable performance. The packaged products achieve excellent sealing, providing effective dust and moisture protection.
  • SF-4525
    adopts stainless steel heating tubes and an automatic heat dissipation
    function, extending the machine's service life by over three times.

  • The
    shrinking temperature and conveyor speed are adjustable, ensuring
    stable performance. The packaged products are well-sealed, dust-proof,
    and moisture-resistant.

  • It is generally used for shrink packaging with PVC, POF, PP, PET, and OPS films.

  • The
    machine delivers stable performance, equipped with a high-power
    circulation motor for even heat distribution. All conveyor chain rollers
    are made of solid 45# steel rods with external silicone sleeves,
    capable of bearing heavier loads while preventing scorching of the
    shrink film.

  • When paired with a fully automatic or semi-automatic sealing and cutting machine, operation


Model

SF-4525

Power

9kw

Power Supply

AC380V 3PH 50/60Hz

Heat Tunnel Dimensions

LxWxH
1000×450×250mm

Packaging Speed

0-15m/min

Machine Dimensions

LxWxH
1300×720×1520mm

Wooden Case Dimensions

LxWxH
1650×800×1160mm

Gross/Net Weight

270/240 kgs
