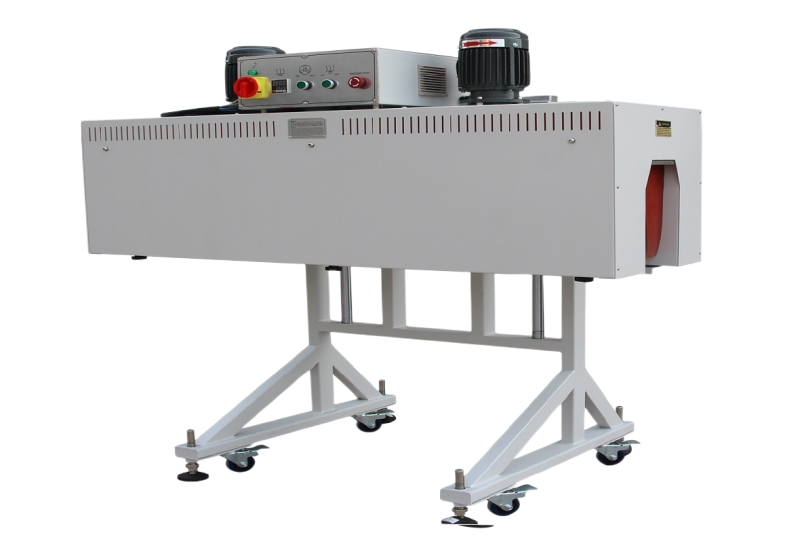

In-line Label Shrink Packaging Machine
Specially designed for various bottle and cup types, ensuring smooth, even, and deformation-free label shrinking.

Specially
designed for various bottle and cup types, ensuring smooth, even, and
deformation-free label shrinking after the process.

  • Utilizes a close-shaft conveyor system to guarantee stable passage of packaged items.

  • Imported components ensure equipment reliability.

  • This
    series employs a hot air circulation shrinking system, primarily
    designed for label shrinking on bottle-shaped, can-shaped,
    barrel-shaped, and cup-shaped products. It can also handle shrinking on
    bottle bodies, bases, or necks.

  • Suitable
    for heat shrinking labels on glass bottles, plastic bottles, paper
    cups, and other containers after labeling in industries such as food,
    beverages, pharmaceuticals, cosmetics, and pesticides.


Model

SF-1230

Power

12w

Power Supply

AC380V 3PH 50/60Hz

Maximum Packaging Dimensions

φ100×H280mm

Heat Tunnel Dimensions

1500×120×300mm

Packaging Speed

20-40m/min

Shrink Film

PET/PVC

Machine Dimensions

LxWxH
1800×610×1550mm
Wooden Case Dimensions LxWxH1850×660×1700mm

Gross/Net Weight

240/210kgs
